PRL0602N series
FEATURES:

◆ Compact 400W with 1U height Power Density: 11.11 watts/cu in
◆ Active Power Factor Corrected to EN61000-3-2 Class D
◆ Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆ Peak Power 700W within 500uS Duty Duration
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Output Voltage ranging from 12 ~ 60Vdc

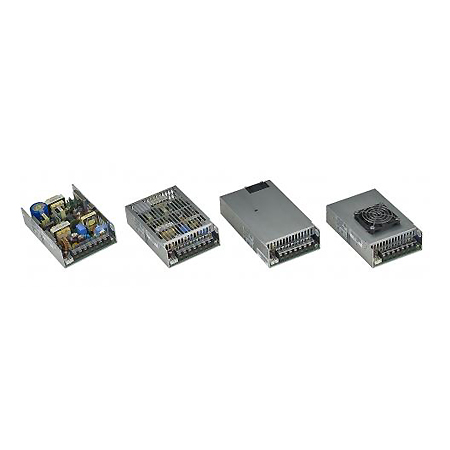

◆ 4 - Mechanical Options
◆ Full Range AC Input





Specification Download

Input Voltage  90 ~ 264Vac full range
Output Power

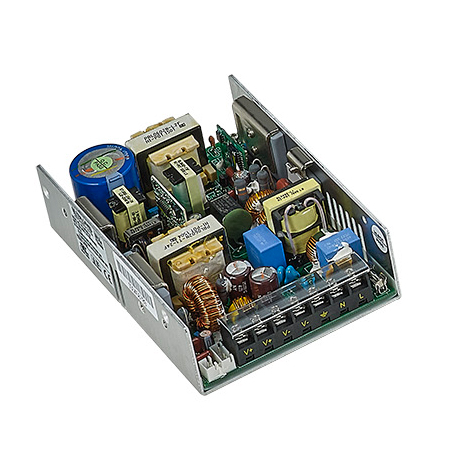

*PRL0602NU Series: U-Chassis @400W max. with min. 26.84CFM forced airflow or 220W convection cooled output.

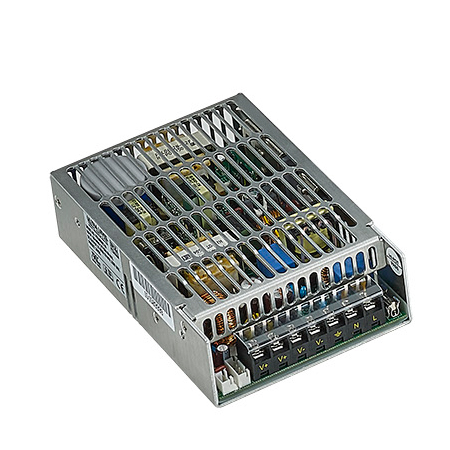

*PRL0602NC Series: U-chassis with vented cover@220W max. convection cooling.

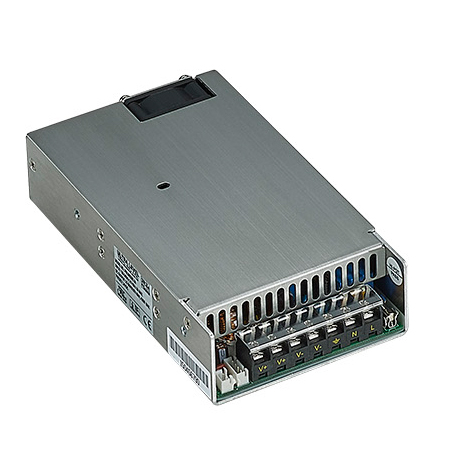

* PRL0602NE Series: Enclosed with rear side built-in fan @400W max.

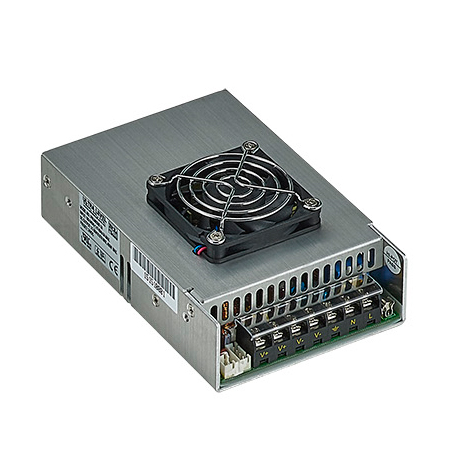

* PRL0602NF Series: Enclosed with top built-in fan @400W max.
Dimension
PRL0602NU Series (U-Chassis Type only): 6(L) x 4(W) x 1.5(H) inches
PRL0602NC Series (U chassis with Top vented cover): 6(L) x 4(W) x 1.57(H) inches
PRL0602NE Series (Enclosed with Rear Side built-in Fan Type): 7(L) x 4(W) x 1.6(H)inches
PRL0602NF Series (Enclosed with Top built-in Fan Type): 6(L) x 4(W) x 2(H)inches
Functions Input Fusing Protection, Over-Power Protection, Short Circuit Protection, Over Voltage Protection,Over-Temperature Protection
Safety  Approved by UL/CUL 62368-1, TUV EN62368-1, CB IEC62368-1, EMC EN55032/EN55035
Options Molex / Terminal block connector


Models:

Model

Output Range

Preset Voltage

Max. Output Current

Regulation

Ripple & Noise

Type U & E & F (forced air)

Type U & C (Convection)

PRL0602Nx-12

10 ~ 13.8V

12 V

33.33A

18.33A

+/- 1%

1%

PRL0602Nx-15

14 ~ 15.5V

15 V

26.67A

14.67A

+/- 1%

1%

PRL0602Nx-18

16 ~ 20V

18V

22.22A

12.22A

+/- 1%

1%

PRL0602Nx-24

21 ~ 26V

24V

16.67A

9.17A

+/- 1%

1%

PRL0602Nx-28

27 ~ 34V

28V

14.29A

7.86A

+/- 1%

1%

PRL0602Nx-36

35 ~ 42V

36V

11.11A

6.11A

+/- 1%

1%

PRL0602Nx-48

43 ~ 50V

48V

8.33A

4.58A

+/- 1%

1%

PRL0602Nx-54

51 ~ 60V

54V

7.41A

4.07A

+/- 1%

1%
