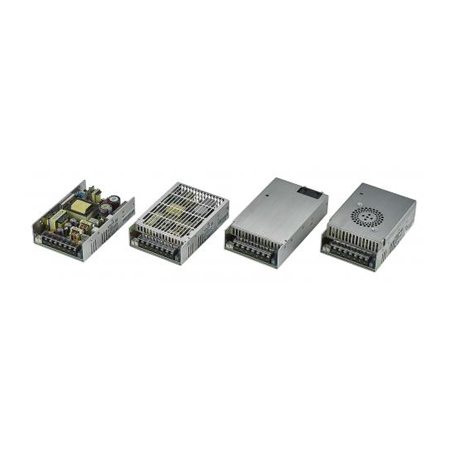

RL0601D series
FEATURES:

◆ Compact 300W with 1U height Power Density: 8.3 watts/cu in
◆ Low Leakage Current 500uA @ 240Vac / 300uA @ 120Vac
◆ 5/ 12/ 24V Dual Output Optional Combinations
◆ Power Factor Corrected to EN61000-3-2 class A
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Approved to UL CUL TUV CB and CE
◆ AC Input Range Auto-Selectable
◆ 4 - Mechanical Options





Specification Download

Input Voltage  90-132 / 180-264Vac
Output Power
* RL0601DU (with min. 18CFM forced air flow) & RL0601DE & RL0601DF Series:
  Max. 300W total combined power of V1 and V2 for RL0601Dx-1224 and 250W for other models.
* RL0601DU and RL0601DC Series with convection cooling:
  Max. 150W total combined power of V1 and V2 for RL0601Dx-1224 and 125W for other models.
Dimension

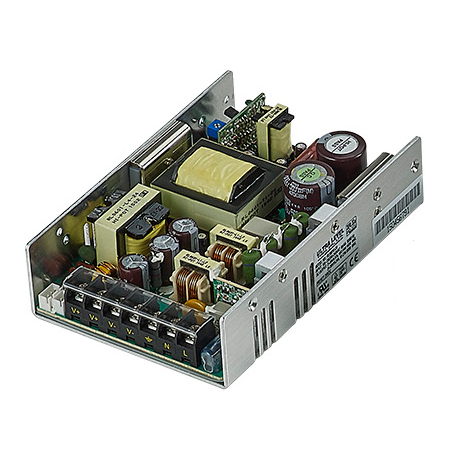

RL0601DU Series (U-Chassis Type only): 6(L) x 4(W) x 1.5(H) inches

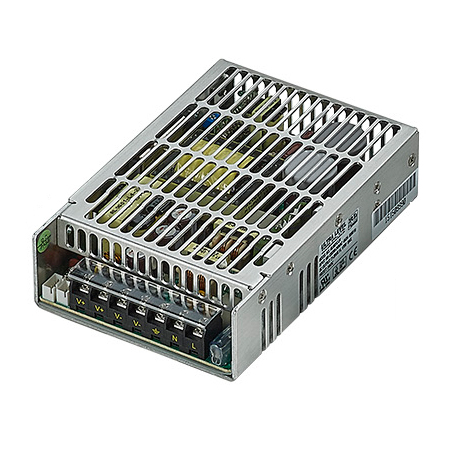

RL0601DC Series (U-Chassis with Top Cover): 6(L) x 4(W) x 1.55(H) inches

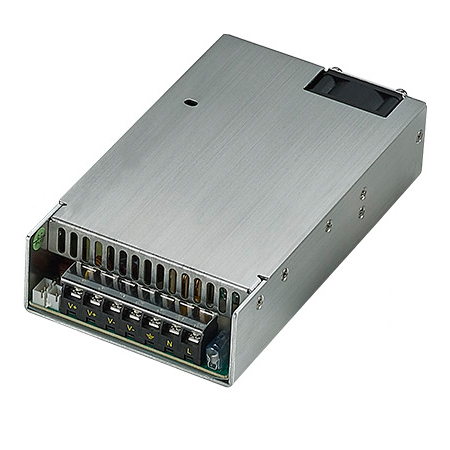

RL0601DE Series (Enclosed with Rear Side built-in Fan Type): 7(L) x 4(W) x 1.6(H)inches

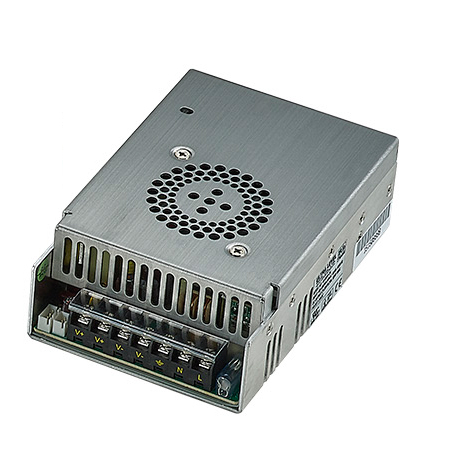

RL0601DF Series (Enclosed with Top built-in Fan Type): 6(L) x 4(W) x 2(H)inches
Functions Over power protection , Short circuit protection , Over voltage protection , Over temperature protection
Safety  Approved by IEC/EN/UL 62368-1, EMC EN55032/ EN55035
Options Molex / Terminal block connector



Models:

Model

Number

Output

Voltage

Max. Output Current

Regulation

Ripple & Noise

Type U (force air) & E & F

Type U, C (Convection)

RL0601Dx-0512

V1:+5V

30A

15A

+/- 5%

1%

V2:+12V

16.67A

10.42A

+/- 5%

1%

RL0601Dx-0524

V1:+5V

30A

15A

+/- 5%

1%

V2:+24V

8.33A

5.2A

+/- 5%

1%

RL0601Dx-1224

V1:+12V

16.67A

12.5A

+/- 5%

1%

V2:+24V

8.33A

6.25A

+/- 5%

1%
