PRL1301D series
FEATURES:

◆ 600W high power density
   (Max. 9.3 watts per cubic inch) with 1U height
◆ Design meets IEC/EN/UL62368-1 Latest Edition
◆ Power Factor Corrected to EN61000-3-2 class D
◆ High Quality & Reliable Component Usage

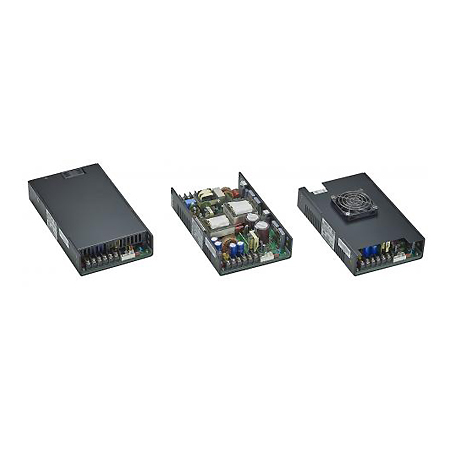

◆ U-Chassis & Enclosed with built-in fan Mechanical Options
◆ 5/ 12/ 24V Dual Output Optional Combinations
◆ Full Range AC Input





Specification Download

Input Voltage  90 ~ 264Vac full range
Output Power

*Total combined power of V1 and V2:
600W Max. for PRL1301D-1224 forced air cooling.
500W Max. for other models forced air cooling.
Dimension

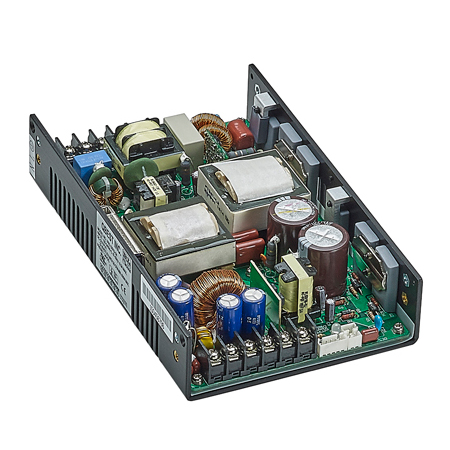

U type: 8(L) x 5(W) x 1.6(H) inches

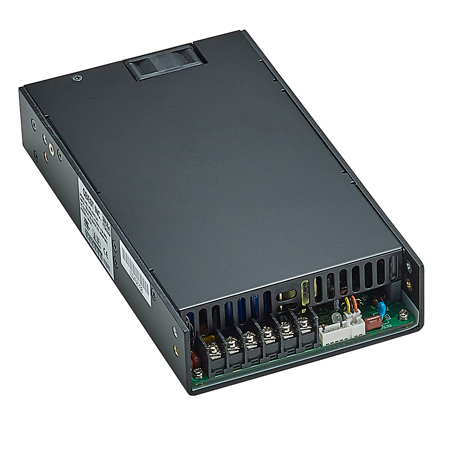

E type: 9(L)☓5(W) ☓1.6(H) inches

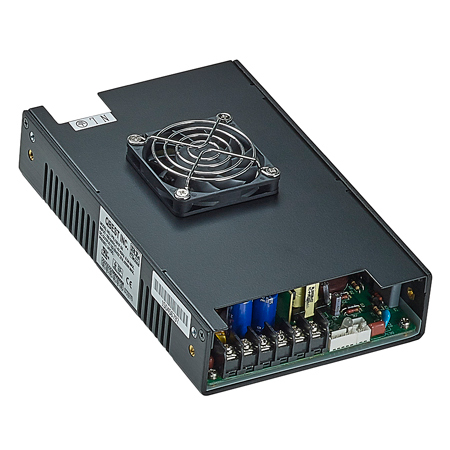

F type: 8(L)☓5(W) ☓ 2 (H) inches
Safety  Design meets IEC/EN/UL62368-1 Latest Edition
Options Molex / Terminal block connector


Models:

Model

 Output rating

Total Regulation

Ripple & Noise

Voltage

(Vdc)

With 25CFM min

 Without external forced airflow (x=U only)

Current (A)

 Power (W) Current (A) Power (W)

PRL1301D-0512

5V

50

 500 35 300

+/- 5%

+/-1%

12V

33.33

 16.6

+/- 5%

+/-1%

PRL1301D-0524

5V

50

 35

+/- 5%

+/-1%

24V

16.67

 5.33

+/- 5%

+/-1%

PRL1301D-1224

12V

33.33

 600 25 400

+/- 5%

+/-1%

24V

16.67

 12.5

+/- 5%

+/-1%
