PRL1103 series
FEATURES:

◆ Compact 300W with 1U height Power Density: 12.5 watts/cu in
◆ Safety Approvals to IEC/EN/UL60601-1 3.1 Edition
◆ Power Factor Corrected to EN61000-3-2 class D
◆ Peak Power 600W within 500uS Duty Duration
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Output Voltages from 12 ~ 52Vdc

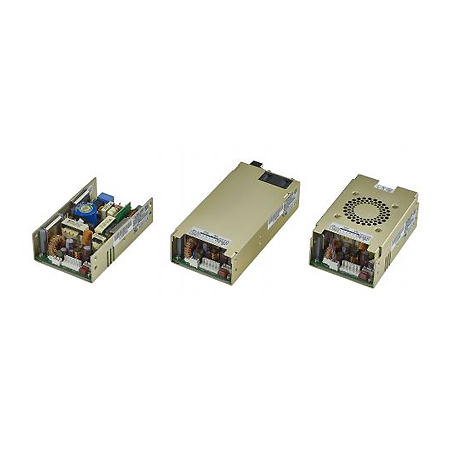

◆ 3 - Mechanical Options
◆ Full Range AC Input


Specification Download

Input Voltage  90 ~ 264Vac full range
Output Power

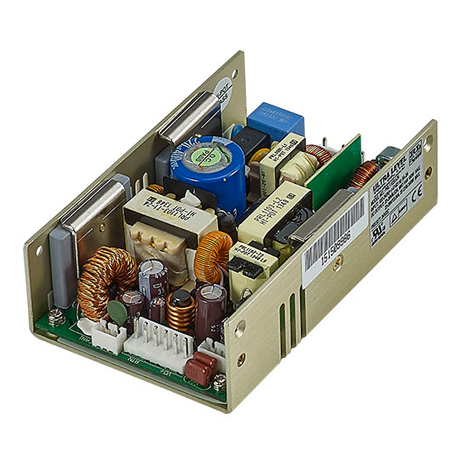

*U Type: U-Chassis @300W max. with min. 25CFM forced airflow; 150W under convection cooling.

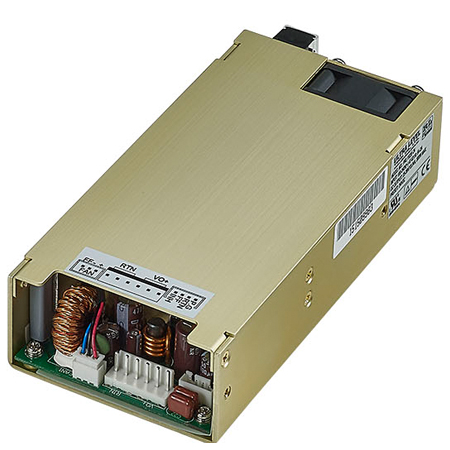

* E Type: Enclosed with rear side built-in fan @300W max.

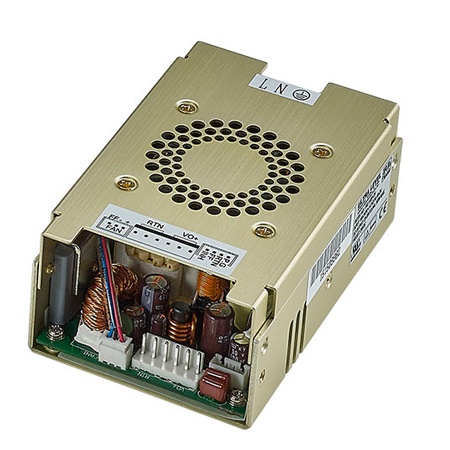

* F Type: U-Chassis  with top built-in fan @300W max.
Dimension
U Type: 5(L) x 3.2(W) x 1.5(H) inches.
F Type: 5(L) x 3.2(W) x 2(H)inches.
E Type: 6.5(L) x 3.2(W) x 1.6(H)inches
Functions Input Fusing Protection,Over-Power Protection,Short Circuit Protection,Over Voltage Protection,Over-Temperature Protection
Safety  Approved by UL/CUL 60601-1, TUV EN60601-1, CB IEC60601-1, EMC EN55022/55024
Options Molex / Terminal block connector


Models:

Model

Output Range

Preset Voltage

Max. Output Power

Regulation

Ripple & Noise

Type U & E & F         (Forced fan flow)

Type U         (Convection)

PRL1103x-12

12 ~ 13.8V

12 V

300W

150W

+/- 1%

1%

PRL1103x-15

14 ~ 16V

15 V

300W

150W

+/- 1%

1%

PRL1103x-24

23 ~ 28V

24V

300W

150W

+/- 1%

1%

PRL1103x-36

35 ~ 43V

36V

300W

150W

+/- 1%

1%

PRL1103x-48

44 ~ 52V

48V

300W

150W

+/- 1%

1%
