PRL1103D series
FEATURES:

◆ Compact 240W with 1U height Power Density: 10.41 watts/cu in
◆ Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆ Safety Approvals to IEC/EN/UL60601-1 3.1 Edition
◆ Power Factor Corrected to EN61000-3-2 Class D
◆ 5/ 12/ 24V Dual Output Optional Combinations
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage

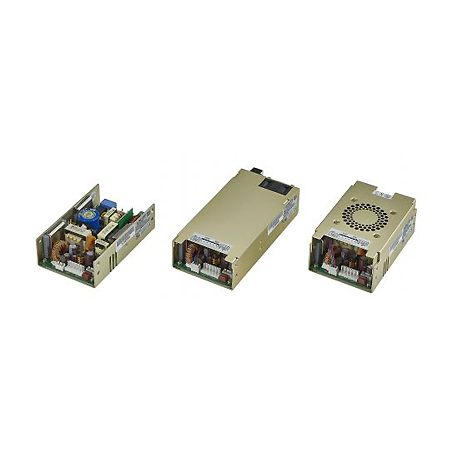

◆ 3 - Mechanical Options
◆ Full Range AC Input



Specification Download

Input Voltage  90 ~ 264Vac full range
Output Power

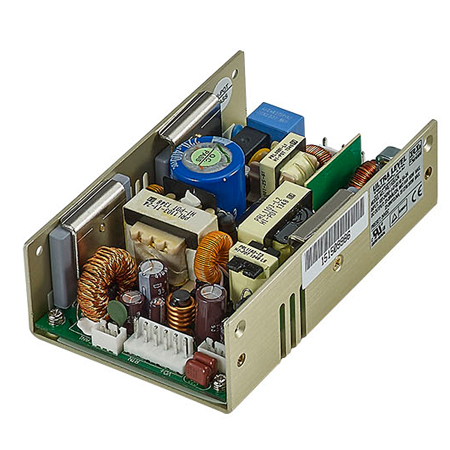

* U Type: U-Chassis @240W max. with min. 25CFM forced airflow or 120W max. under air convection.

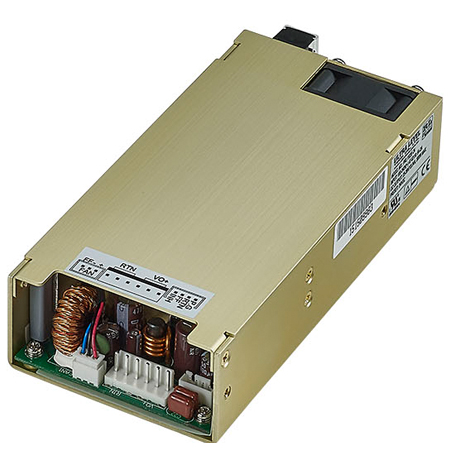

* E Type: Enclosed with rear side built-in fan @240W max.

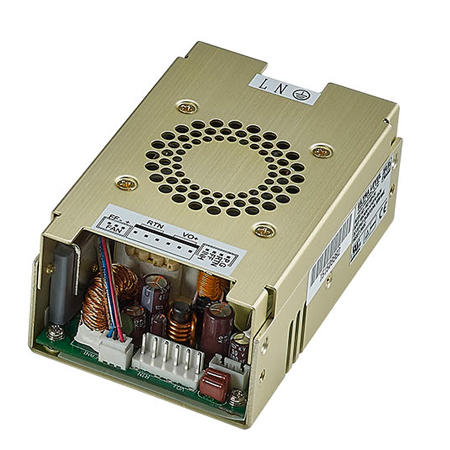

* F Type: U-Chassis with top built-in fan @240W max.
Dimension
U Type: 5(L) x 3.2(W) x 1.5(H) inches.
F Type: 5(L) x 3.2(W) x 2(H)inches.
E Type: 6.5(L) x 3.2(W) x 1.6(H)inches
Functions Over-Power Protection , Short Circuit Protection , Over Voltage Protection , Over-Temperature Protection, Remote On-Off
Safety  Approved by UL/CUL 60601-1, TUV EN60601-1, CB IEC60601-1, EMC EN60601-1-2 class B conducted / radiated; EN61000-3-2,3;  IEC61000-4-2, 3, 4, 5, 6, 8, 11
Options Molex / Terminal block connector



Models:

Model

Number

Output

Voltage

Max. Output Current

Regulation

Ripple & Noise

Type U (force air) & E & F

Type U (Convection)

PRL1103Dx-0512

V1:+  5V

24A

12A

+/- 5%

1%

V2:+ 12V

13.33A

6.67A

+/- 5%

1%

PRL1103Dx-1224

V1:+ 12V

13.33A

6.67A

+/- 5%

1%

V2:+ 24V

6.67A

3.33A

+/- 5%

1%
