RL0601 series
FEATURES:

◆ Compact 320W with 1U height Power Density: 8.9 watts/cu in
◆ Low Leakage Current 500uA @ 240Vac / 300uA @ 120Vac
◆ Power Factor Corrected to EN61000-3-2 class A
◆ Peak Power 700W within 500uS Duty Duration
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Approved to UL CUL TUV CB and CE.
◆ AC Input Range Auto-Selectable
◆ Output Voltages from 2 ~ 60Vdc

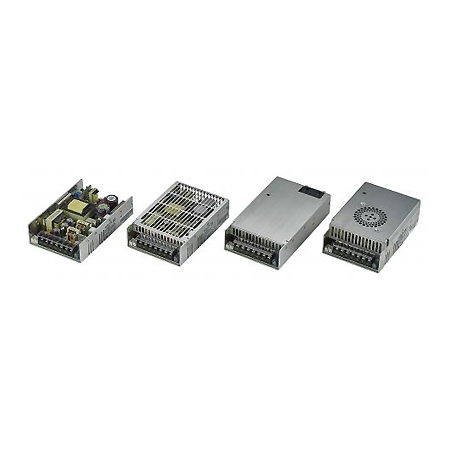

◆ 4 - Mechanical Options





Specification Download

Input Voltage  90-132 / 180-264Vac
Output Power
* RL0601U Series: U-Chassis @320W max. with 22CFM max. forced airflow is required to model RL0601U-05 and 18 CFM for other models or 180W convection cooled output.

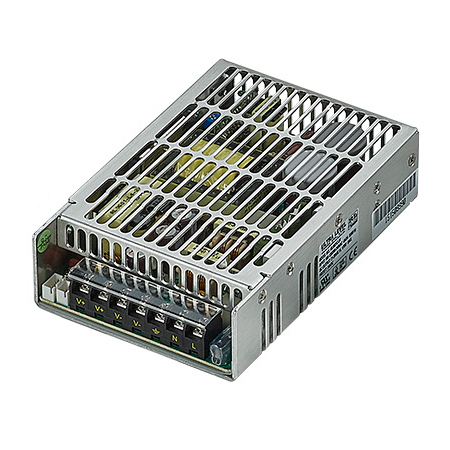

* RL0601C Series: U-Chassis @170W max. convection cooled.

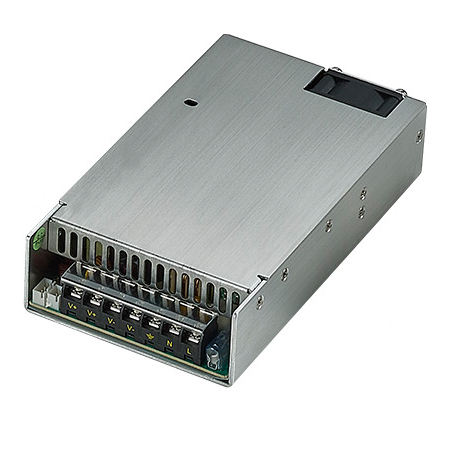

* RL0601E Series: Enclosed with rear side built-in fan @320W max.

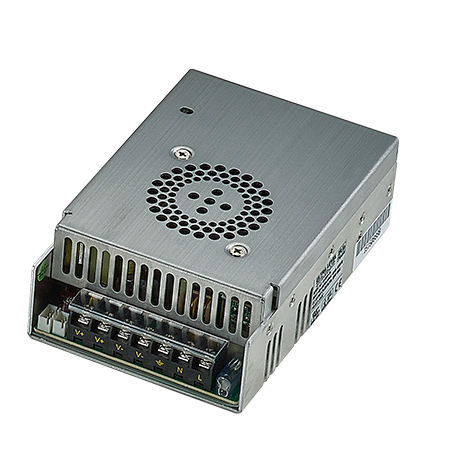

* RL0601F Series: Enclosed with top built-in fan @320W max.
Dimension

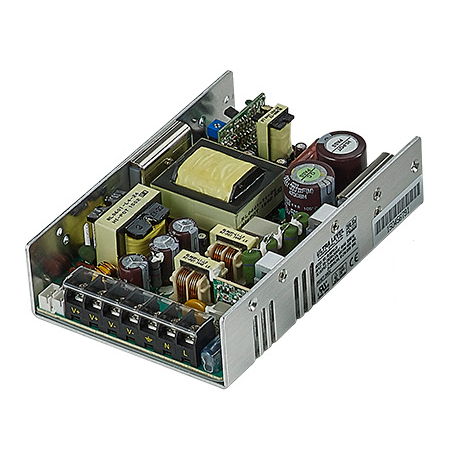

RL0601U Series (U-Chassis Type only): 6(L) x 4(W) x 1.5(H) inches
RL0601C Series (U-Chassis with Top Cover): 6(L) x 4(W) x 1.55(H) inches
RL0601E Series (Enclosed with Rear Side built-in Fan Type): 7(L) x 4(W) x 1.6(H)inches
RL0601F Series (Enclosed with Top built-in Fan Type): 6(L) x 4(W) x 2(H)inches
Functions Over-Power Protection , Short Circuit Protection , Over Voltage Protection , Over-Temperature Protection
Safety  Approved by IEC/EN/UL 62368-1, EMC EN55032/ EN55035
Options Molex / Terminal block connector


Models:

Model

Output Range

Preset Voltage

Max. Output Power or Current

Regulation

Ripple & Noise

Type U (forced air) & E & F

Type U (Convection)

Type C

(Convection)

RL0601x-05

2 ~ 5.5V

5V

45A

27.28A

25A

+/- 1%

50mV

RL0601x-09

6 ~ 11V

9 V

29.1A

16.37A

13.64A

+/- 1%

1%

RL0601x-12

12 ~ 13.5V

12 V

320W

180W

170W

+/- 1%

1%

RL0601x-15

13.6 ~ 15V

15 V

320W

180W

170W

+/- 1%

1%

RL0601x-18

16 ~ 20V

18V

320W

180W

170W

+/- 1%

1%

RL0601x-24

21 ~ 26V

24V

320W

180W

170W

+/- 1%

1%

RL0601x-28

27 ~ 34V

28V

320W

180W

170W

+/- 1%

1%

RL0601x-36

35 ~ 42V

36V

320W

180W

170W

+/- 1%

1%

RL0601x-48

43 ~ 50V

48V

320W

180W

170W

+/- 1%

1%

RL0601x-54

51 ~ 60V

54V

320W

180W

170W

+/- 1%

1%
