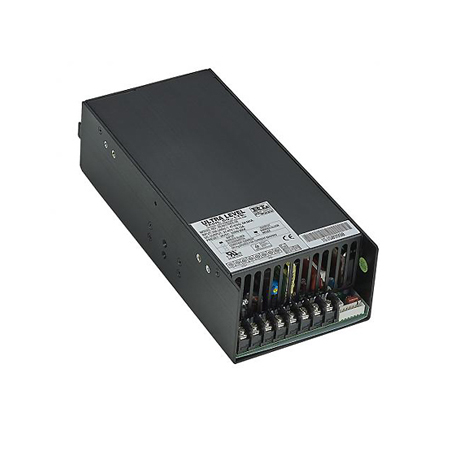

RL5017R series
FEATURES:

◆ High Quality & Reliable Component Usage
◆ Variable Fan Speed & Low Acoustical Noise
◆ Peak Power 900W within 500uS duty duration
◆ High Power Density (Max. 9.1 watts per cubic inch)
◆ Active Power Factor Corrected to EN61000-3-2 class D
◆ Approved to UL/CUL/TUV/CB/CE & Class B Emissions
◆ Built-in Remote On-Off, Remote Sense, Current Monitor
◆ Enclosed with built-in fan




Specification Download

Input Voltage
90 ~ 264Vac full range, 47~63Hz.
Output Power Max 600W
Dimension  Enclosed with built-in fan Type: 9.2(L) x 4.3(W) x 2.5(H)  inches.
Safety  Approved by UL/CUL 62368-1, TUV EN62368-1, CB IEC62368-1, EMC EN55032/ EN55035
Options Molex / Terminal block connector


Models:

Model

Input Rating

Output Voltage

Max Output Current

Regulation

Ripple & Noise

Max.

Power

Preset

Range

RL5017RE5-03

90-264VAC, 8A

3.3V

2 ~ 3.3V

80A

+/- 1%

75mV

264W

RL5017RE5-05

90-264VAC, 8A

5V

5 ~ 6V

80A

+/- 1%

75mV

400W

RL5017RE5-12

90-264VAC, 8A

12V

12 ~ 15V

41.67A

+/- 1%

+/-1%

500W

RL5017RE5-16

90-264VAC, 8A

18V

16 ~ 21V

31.25A

+/- 1%

+/-1%

500W

RL5017RE5-24

90-264VAC, 8A

24V

22 ~ 30V

22.73A

+/- 1%

+/-1%

500W

RL5017RE5-36

90-264VAC, 8A

36V

31 ~ 47V

16.13A

+/- 1%

+/-1%

500W

RL5017RE5-48

90-264VAC, 8A

48V

48 ~ 56V

10.42A

+/- 1%

+/-1%

500W

RL5017RE6-03

90-264VAC, 10A

3.3V

2 ~ 3.3V

90A

+/- 1%

75mV

297W

RL5017RE6-05

90-264VAC, 10A

5V

5 ~ 6V

90A

+/- 1%

75mV

450W

RL5017RE6-12

90-264VAC, 10A

12V

12 ~ 15V

50A

+/- 1%

+/-1%

600W

RL5017RE6-16

90-264VAC, 10A

18V

16 ~ 21V

37.5A

+/- 1%

+/-1%

600W

RL5017RE6-24

90-264VAC, 10A

24V

22 ~ 30V

27.27A

+/- 1%

+/-1%

600W

RL5017RE6-36

90-264VAC, 10A

36V

31 ~ 47V

19.35A

+/- 1%

+/-1%

600W

RL5017RE6-48

90-264VAC, 10A

48V

48 ~ 56V

12.5A

+/- 1%

+/-1%

600W
