PRL0801D series
FEATURES:

◆ Compact 240W with 1U height Power Density: 10.41 watts/cu in
◆ Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆ 5/ 12/ 24V Dual Output Optional Combinations
◆ Power Factor Corrected to EN61000-3-2 Class D
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Approved to UL TUV CE CB

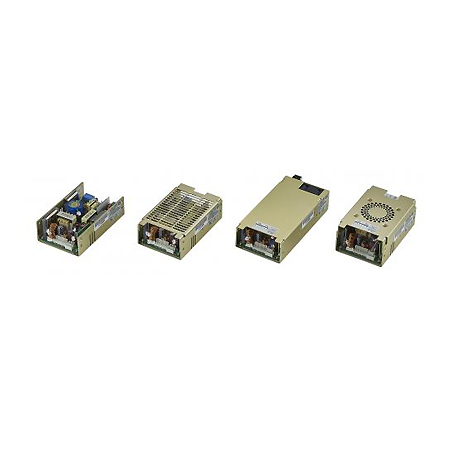

◆ 4 - Mechanical Options
◆ Full Range AC Input




Specification Download

Input Voltage  90 ~ 264Vac full range
Output Power
* U Type: U-Chassis @240W max. with min. 25CFM forced airflow or 120W max. under air convection (Option: vented top cover).
* E Type: Enclosed with rear side built-in fan @240W max.
* F Type: U-Chassis with top built-in fan @240W max.
Dimension

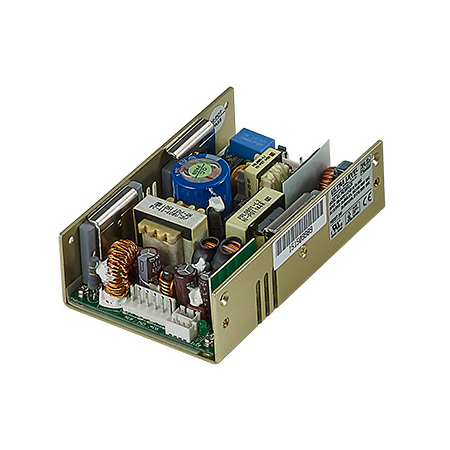

U Type (U-Chassis only): 5(L) x 3.2(W) x 1.5(H) inches

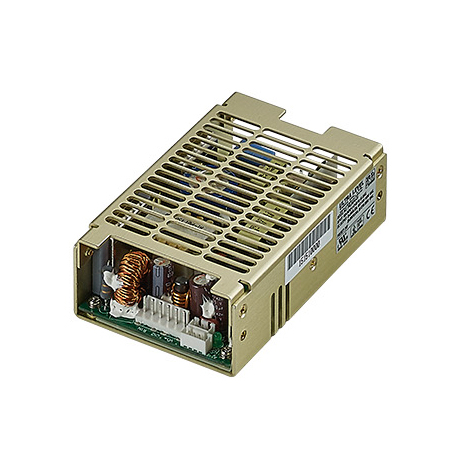

C Type (U-Chassis with Top Cover): 5(L) x 3.2(W) x 1.66(H) inches

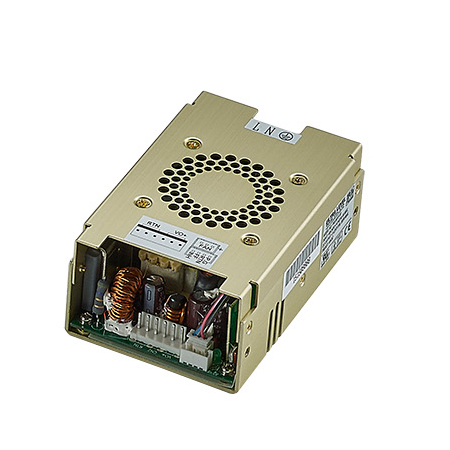

F Type (U-Chassis with Top built-in Fan): 5(L) x 3.2(W) x 2(H) inches

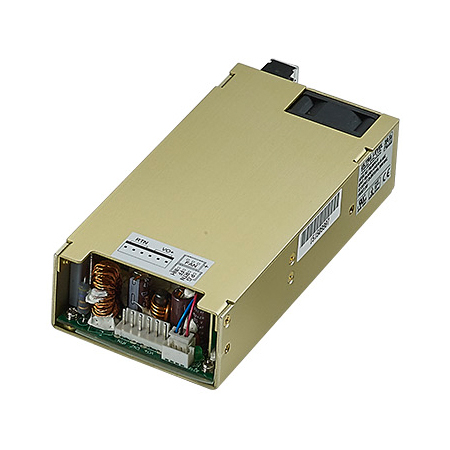

E Type (Enclosed with Rear Side built-in Fan): 6.5(L) x 3.2(W) x 1.6(H)inches
Functions Over-Power Protection , Short Circuit Protection , Over Voltage Protection , Over-Temperature Protection
Safety  Approved by UL/CUL 62368-1, TUV EN62368-1, CB IEC62368-1, EMC EN55032/ EN55035
Options Molex / Terminal block connector


Models:

Model

Number

Output

Voltage

Max. Output Current

Regulation

Ripple & Noise

Type U (force air) & E & F

Type U (Convection)

PRL0801Dx-0512

V1:+  5V

24A

12A

+/- 5%

1%

V2:+ 12V

13.33A

6.67A

+/- 5%

1%

PRL0801Dx-0524

V1:+  5V

24A

12A

+/- 5%

1%

V2:+ 24V

6.67A

3.33A

+/- 5%

1%

PRL0801Dx-1224

V1:+ 12V

13.33A

6.67A

+/- 5%

1%

V2:+ 24V

6.67A

3.33A

+/- 5%

1%
